22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

Image Grand : 22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Jiayao
Certification:	ISO9001:2008 COC
Numéro de modèle:	Tour d'arbre bionique

Conditions de paiement et expédition:

Quantité de commande min:	4 tonnes
Prix:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Détails d'emballage:	Emballé dans des boîtes en bois ou livré avec des feuilles galvanisées
Délai de livraison:	15 jours
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	500 tonnes par mois

Contact Causez Maintenant

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

description de

Nom du produit:	Tour d'arbre bionique de 22 M intégrant une antenne cachée	Matériel:	Pour l'application de la norme ASTM A36 A572 Gr50
Écrous et boulons:	Grade 8.8/6.8/4.8	Certification:	ISO9001:2008 COC
Hauteur:	9-40m	Standard:	ANSI/TIA-222-G/H/F, EN 1991-1-4 et EN 1993-3-1
Vitesse du vent:	0 à 300 km/h	Norme de galvanisation:	ASTM A123/ISO 1461
Impact environnemental:	Écologique	Traitement anticorrosion:	galvanisé à chaud
Durée de vie:	Plus de 20 ans	Soudage:	AWS D 1.1
Emplacement d'installation:	Environnements urbains	Emplacement:	Centres-villes urbains
Application:	Convient à la fois pour les zones urbaines et rurales	Fonction:	Purification de l'air et amélioration de l'environnement
Lieux d'installation:	Zones urbaines, parcs et zones industrielles	Fonctionnalités supplémentaires:	Capteurs de qualité de l’air et surveillance des données
Inspiration de conception:	Structure arborescente naturelle
Mettre en évidence:	Bionic Tree Tower with hidden antenna mounts , 22M Bionic Tree Tower for 5G 4G , Bionic Tree Tower with cable management

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices 0

JIAYAO CO., LTD

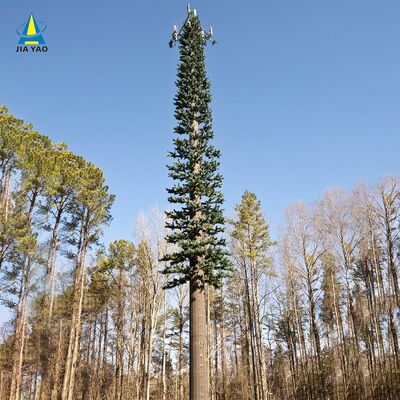

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

Core Structural & Design Features

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.

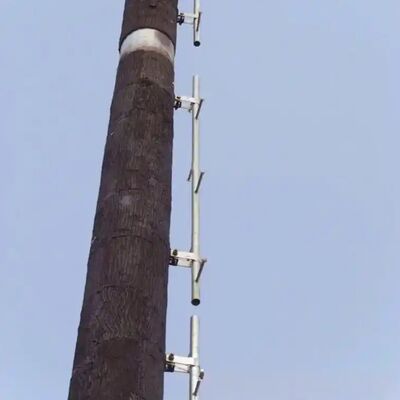

Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)

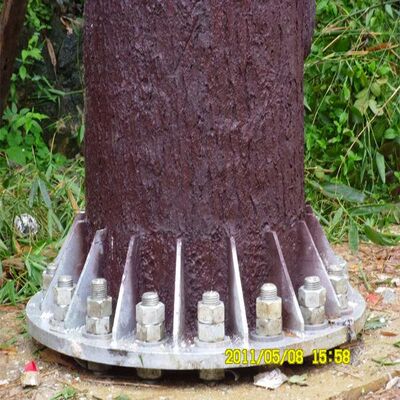

Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

2.Product Detail

Please Click Here For More Information!!!!!!

3.Packaging & Shipping

4.Cooperation Customers

5.Certifications

6.Our Services

JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.
